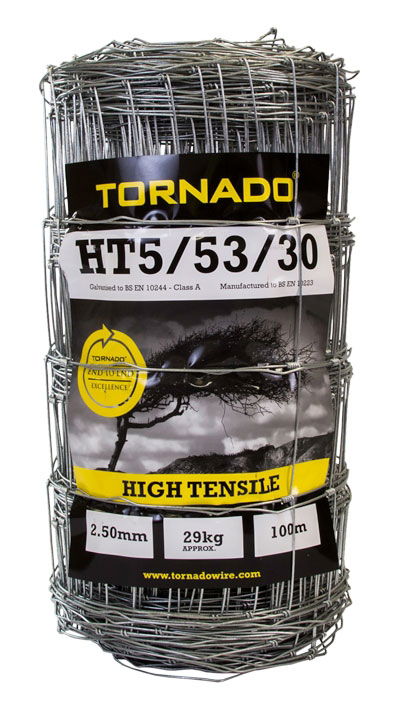

Hinge Joint HT5/53/30 High Tensile Hedge Bottom / Wall Top 100m

Stock Code: HZST055303

Pallet Quantity - 15 Rolls

Common Applications

All livestock

HT5/53/30 is often used as a hedge bottom fence to prevent livestock escaping below the hedge, or as a wall topper to prevent livestock from jumping over the wall. The 30cm distance between the stay wires provide a good economical alternative to 15cm spacings. HT5/53/30 is manufactured with high tensile wire which strains tighter than mild steel and so requires fewer intermediate posts, making it quicker to erect. The spring like properties of a high tensile wire help the netting stay tight, keeping maintenance to a minimum.

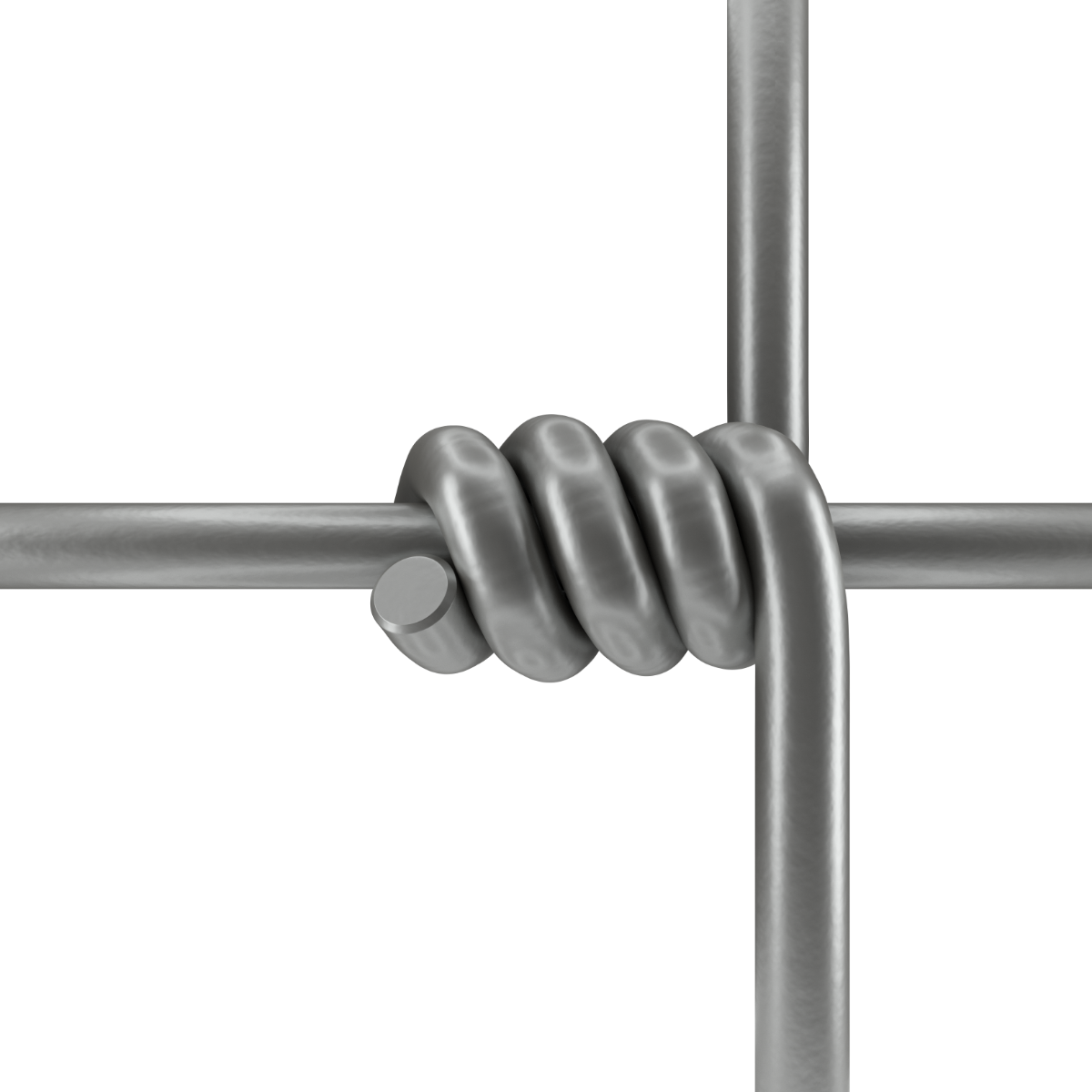

The traditional, cost-effective hinge joint enables the netting to be turned out or cranked for use in special applications.

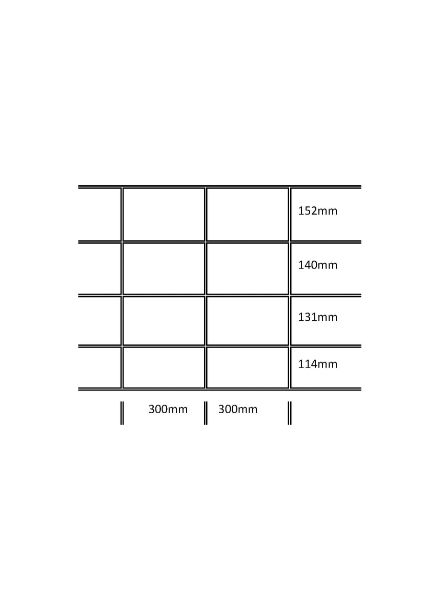

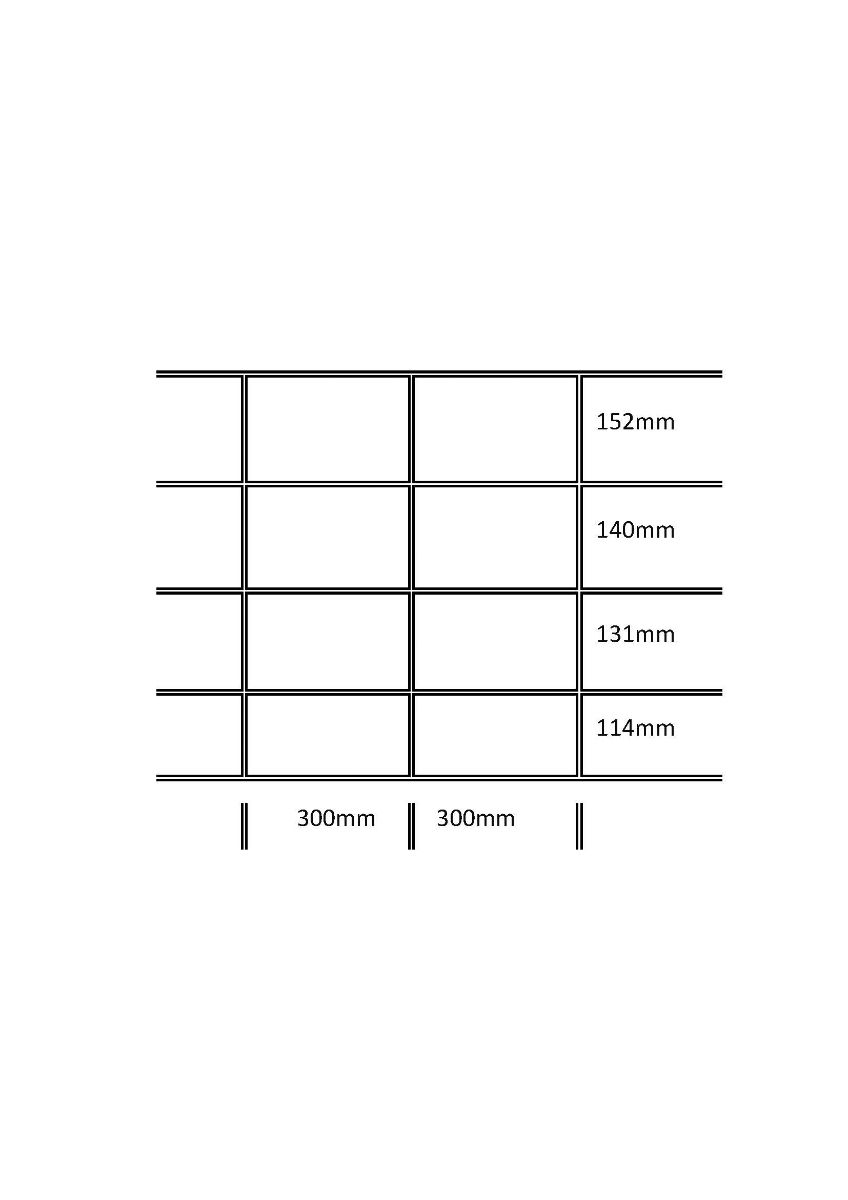

Specification

Number of line wires 5

Overall height 53cm

Distance between stay wires 30cm

Top & bottom line wire specification 2.5mm diameter - 1235 - 1390 N/mm2

Intermediate line wire specification 2.5mm diameter -1235 - 1390 N/mm2

Vertical stay wire specification 2.5mm diameter - 695 - 850 N/mm2

Approx. weight per 100m roll 29kg

Material composition heavily galvanised steel wire

British & European Standards

BSEN 10218

BSEN 10223

BSEN 10244

Hinge Joint HT5/53/30 High Tensile Hedge Bottom / Wall Top 100m

Name File Name
HT5_53_30 HEDGE BOTTOM _ WALL TOP HT5_53_30 HEDGE BOTTOM _ WALL TOP.pdf
