Common Applications
Horses / Dogs
Horse
Tornado’s horse fencing has been the choice of horse owners for decades. Investment in the latest manufacturing technology has enabled us to produce a core range of products designed especially for the horse owner.
Our horse fencing products are engineered to give greater durability and extended life, giving you peace of mind and heling to protect your valuable animals for a lower lifetime cost.
The 50mm spacing of the “stiff-stay” wires give greater protection from hooves getting caught in the mesh and is suitable for use where foals are present.
Where paddocks are divided and there is a possibility that horses could be on both sides of the fence, we recommend double-fencing with at least one metre between the two fences. Alternatively, off-set electric brackets can be used to enhance the fence.
Dog
Keeping your dog safe and secure is a top priority for pet owners. Tornado’s R13/120/5 mesh size of 100mm x 50mm helps provide a secure barrier for a variety of dog breeds. Alternative heights of 0.9m. 1.1m and 1.8m are also available to suit a variety of applications. For dog exercise enclosures we would recommend using R19/180/5 and 1800 x 50 x 50mm welded mesh for doggie day care.

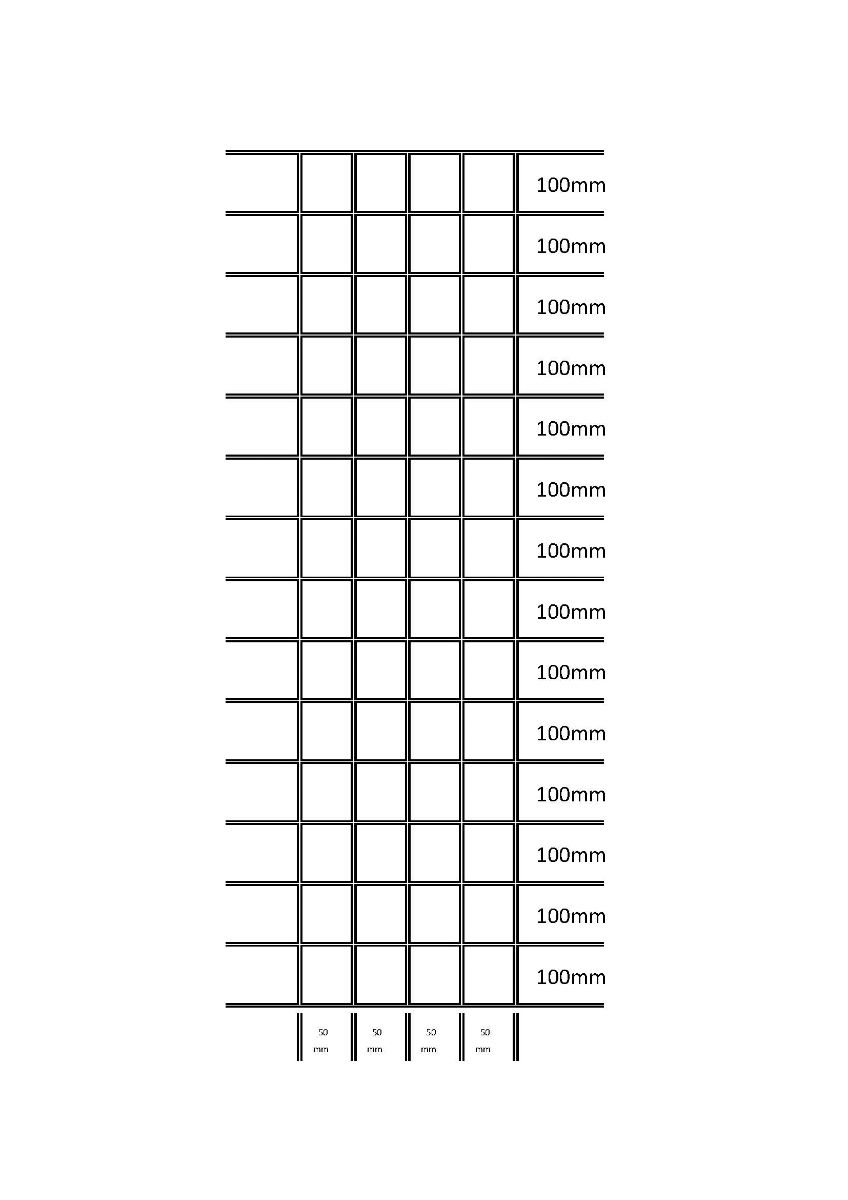

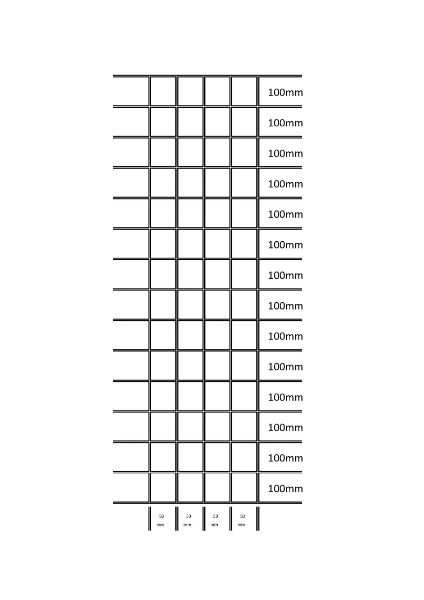

R15/140/5 combines solid vertical wires “stiff-stays” spaced at 50mm with horizontal line wires spaced at 100mm, creating the strongest and safest mesh at 1200mm overall height. The high tensile line wires give excellent resistance to animal impact and the “stiff-stays” resist downward pressure.
The Torus knot has no sharp edges, this helps to prevent hair or rugs from getting caught by the mesh.
Specification
Number of line wires 15
Overall height 140cm
Distance between stay wires 5cm
Top & bottom line wire specification 2.5mm diameter - 1235 - 1390 N/mm2
Intermediate line wire specification 2.5mm diameter - 1235 - 1390 N/mm2 Vertical stay wire specification 2.5mm diameter - 695 - 850 N/mm2
Approx. weight per 100m roll 199kg
Material composition heavily galvanised steel wire
British & European Standards
BSEN 10218
BSEN 10223
BSEN 10244
